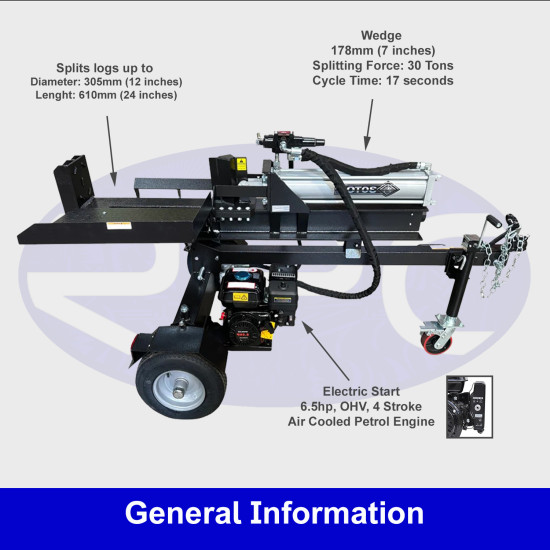

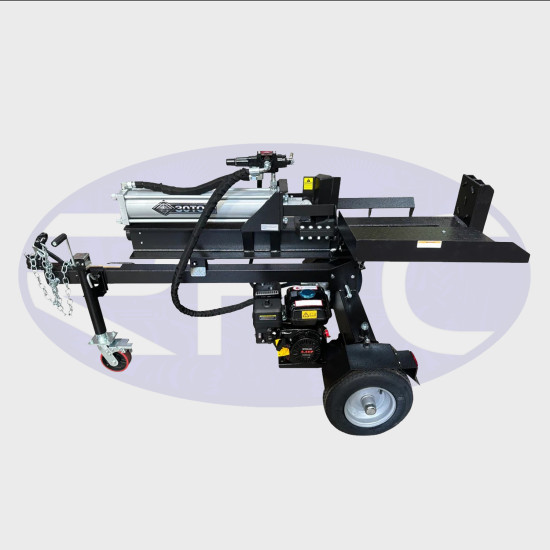

Black Diamond 30‑Ton Petrol Log Splitter – Electric Start, Horizontal/Vertical Operation

A powerful 30‑ton petrol log splitter equipped with a 6.5HP OHV engine and electric key start for effortless operation. Built for heavy‑duty firewood production, this splitter features a 100mm x 580mm hydraulic cylinder, 2‑stage hydraulic pump, and a fast 17‑second cycle time. Designed to handle tough Australian hardwoods, it operates in both horizontal and vertical positions, making it ideal for large, heavy logs. With a hardened steel wedge, robust I‑beam construction, and off‑road tow capability, this unit is built for serious work on farms, acreages, and commercial wood yards.

Features:

  • 6.5HP OHV 4‑stroke petrol engine with electric key start
  • 30‑ton splitting force for heavy‑duty performance
  • 100mm x 580mm hydraulic cylinder for powerful splitting
  • 2‑stage hydraulic pump for fast pressure build‑up
  • 17‑second cycle time for efficient operation
  • Operates horizontally or vertically for large log handling
  • Splits logs up to 610mm (24") long and 305mm (12") diameter
  • 178mm (7") hardened steel splitting wedge
  • Auto‑return valve retracts ram automatically
  • Extra heavy‑duty I‑beam construction
  • 16" pneumatic tyres for mobility on uneven terrain
  • Quick‑release jockey wheel for easy manoeuvring
  • 50mm cast steel tow coupling
  • Suitable for off‑road towing up to 72km/h
  • 12V 9Ah maintenance‑free battery included

Specifications:

  • Model: LS30JTTESBD
  • Splitting force: 30 tons
  • Engine: 6.5HP OHV, 4‑stroke, air‑cooled petrol (electric start)
  • Hydraulic cylinder: 100mm x 580mm stroke
  • Maximum log length: 610mm (24")
  • Maximum log diameter: 305mm (12")
  • Hydraulic oil supplied: 10L ISO 46
  • Oil tank capacity: 12L
  • Cycle time: 17 seconds
  • Wedge: 178mm (7") hardened steel
  • Operating positions: Horizontal & vertical
  • Wheel size: 16" pneumatic tyres
  • Towing speed: Up to 72km/h (off‑road)
  • Battery: 12V 9Ah maintenance‑free lead‑acid
  • Jockey wheel: 200mm x 50mm (8" x 2")
  • Shipping dimensions: 187cm x 51cm x 68cm
  • Shipping weight: 270kg

Package Contents:

  • 1 x 30‑Ton Petrol Log Splitter (Electric Start)
  • 1 x 12V Battery
  • 1 x Jockey Wheel
  • 1 x User Manual

Warranty:

Comes with a 12‑month warranty.
