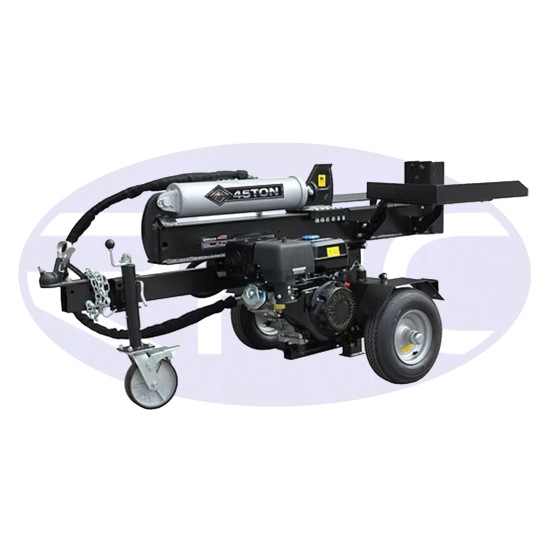

45‑Ton Electric Start Log Splitter – Horizontal & Vertical Operation

The Millers Falls LS45ESBD 45‑Ton Log Splitter delivers massive splitting power for tough Australian hardwoods. Powered by a 15HP OHV engine with electric start, this heavy‑duty splitter is built for high‑volume firewood production on farms, acreages, and commercial operations.

With a 5" hydraulic cylinder, 2‑stage 11 GPM pump, and an 18‑second cycle time, the LS45ESBD provides fast, efficient splitting in both horizontal and vertical positions. The 8" hardened steel wedge, automatic return valve, and safety release system ensure smooth, reliable, and safe operation.

Designed for mobility, it includes 16" pneumatic tyres, mudguards, reflectors, an 8" jockey wheel, and a 50mm cast‑steel tow coupler. Suitable for private‑property towing up to 72 km/h, this splitter is built for serious work and long‑term durability.

Features:

  • Massive 45‑ton splitting force
  • 15HP OHV 4‑stroke engine with electric start
  • 12V 9AH maintenance‑free battery included
  • 5" (127mm) hydraulic cylinder with 493mm stroke
  • 2‑stage 11 GPM gear pump for fast cycle times
  • 18‑second split + return cycle
  • 8" hardened steel wedge for tough hardwoods
  • Splits logs up to 550mm long and 305mm diameter
  • Horizontal and vertical working positions
  • Automatic return valve with safety release
  • 16" × 6.5" pneumatic tyres with mudguards & reflectors
  • 8" jockey wheel for easy manoeuvring
  • 50mm cast‑steel tow coupler with safety chains
  • Private‑property towing up to 72 km/h
  • Supplied with 20L ISO46 hydraulic oil

Specifications:

  • Model: LS45ESBD
  • Engine: 15HP, 4‑stroke, OHV, air‑cooled
  • Battery: 12V, 9AH maintenance‑free
  • Cylinder: 5" × 19.4" (127mm × 493mm)
  • Pump: 2‑stage, 11 GPM
  • Maximum splitting force: 45 ton
  • Wedge height: 8" (200mm)
  • Cycle time: 18 seconds
  • Max log length: 550mm
  • Max log diameter: 305mm
  • Working positions: Horizontal & vertical
  • Wheels: 16" × 6.5" pneumatic with mudguards & reflectors
  • Jockey wheel: 8" (200mm) × 2" (50mm)
  • Coupler: 50mm cast steel with safety chains
  • Towing speed: Max 72 km/h (private property)
  • Package dimensions: 174 × 52 × 79 cm
  • Package weight: 317kg
  • Shipping weight: 323kg

Package Contents:

  • 1 × LS45ESBD 45‑Ton Log Splitter
  • 1 × 12V 9AH battery
  • 20L ISO46 hydraulic oil (pre‑supplied)
  • Jockey wheel & tow coupler assembly
  • User manual

Warranty:

Comes with a 12‑month warranty.
